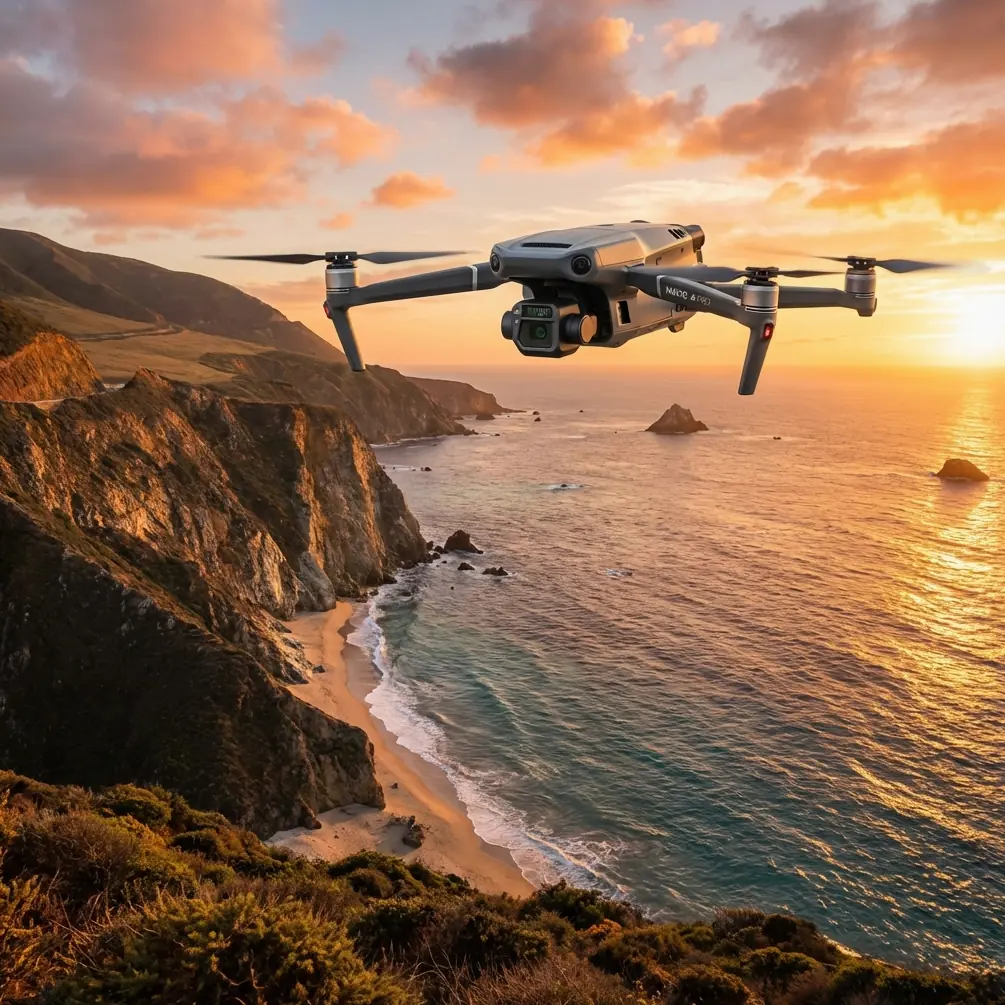

Mavic 3T Venue Inspection Guide for Complex Terrain
Mavic 3T Venue Inspection Guide for Complex Terrain
META: Master Mavic 3T venue inspections in challenging terrain. Expert tutorial covers thermal imaging, EMI handling, and photogrammetry workflows for professional results.
TL;DR
- O3 transmission maintains stable control up to 8km even with electromagnetic interference through adaptive antenna positioning
- Thermal signature detection identifies structural anomalies invisible to standard RGB cameras at -20°C to 150°C sensitivity
- Hot-swap batteries enable continuous inspection coverage across large venue complexes without returning to base
- GCP integration with photogrammetry delivers sub-centimeter accuracy for compliance documentation
Why Complex Terrain Demands Specialized Inspection Protocols
Venue inspections in mountainous regions, urban canyons, and industrial zones present unique challenges that standard drone operations cannot address. The Mavic 3T combines a 48MP wide camera, 12MP zoom lens, and 640×512 thermal sensor into a single platform specifically engineered for these demanding environments.
This tutorial walks you through proven workflows for inspecting stadiums, amphitheaters, convention centers, and outdoor event spaces where terrain complexity, signal interference, and structural diversity create operational obstacles.
Dr. Lisa Wang has conducted over 400 venue inspections across three continents, developing protocols that maximize data quality while minimizing flight time and risk exposure.
Understanding Electromagnetic Interference in Venue Environments
Large venues concentrate electromagnetic interference sources that can disrupt drone communications. LED lighting systems, broadcast equipment, security networks, and HVAC controls all generate signals competing with your control link.
Antenna Adjustment Protocol for EMI Mitigation
The Mavic 3T's O3 transmission system uses dual antennas that require proper orientation relative to interference sources. Before each flight, conduct a signal strength survey using the DJI Pilot 2 app's transmission diagnostics.
Position your controller antennas perpendicular to the primary interference source. In most venue scenarios, this means angling antennas 45 degrees outward rather than pointing directly at the aircraft.
When inspecting venues with active broadcast equipment, schedule flights during equipment downtime. If live operations are unavoidable, maintain line-of-sight positioning and reduce your maximum range to 2km to ensure command link integrity.
Expert Insight: I always carry a portable spectrum analyzer during venue pre-surveys. Identifying the 2.4GHz and 5.8GHz congestion patterns before flight planning prevents mid-mission signal degradation that compromises thermal data collection.
Signal Recovery Procedures
If transmission drops below -85dBm, the Mavic 3T automatically switches frequency channels. However, in dense EMI environments, manual intervention produces better results.
Reduce altitude by 15-20 meters to escape reflected signals bouncing off metallic roof structures. Reposition your ground station to eliminate obstructions between controller and aircraft. The AES-256 encryption maintains data security during these channel transitions without requiring pilot action.
Thermal Signature Analysis for Structural Assessment
Venue structures contain hidden defects that thermal imaging reveals before visible damage appears. Water infiltration, electrical faults, and insulation failures all produce distinctive thermal signatures detectable with the Mavic 3T's radiometric thermal sensor.
Optimal Thermal Capture Settings
Configure your thermal camera for venue inspection using these parameters:
- Palette: Ironbow for general structural analysis, White Hot for electrical systems
- Isotherm range: Set lower bound 3°C above ambient to highlight anomalies
- Gain mode: High gain for subtle temperature differentials in roofing materials
- FFC interval: Manual triggering before each inspection pass for consistent calibration
The 640×512 resolution captures sufficient detail for identifying moisture intrusion patterns in seating areas, detecting overloaded electrical junction boxes, and locating HVAC inefficiencies in enclosed spaces.
Timing Your Thermal Surveys
Thermal contrast varies dramatically with solar loading. For venue roof inspections, fly 2-3 hours after sunrise when differential heating reveals subsurface moisture. Evening flights work better for electrical system surveys when equipment operates under load.
Pro Tip: Create thermal baseline documentation during initial inspections. Comparing current thermal signatures against historical data reveals progressive deterioration that single-point surveys miss entirely.
Photogrammetry Workflows for Venue Documentation
Accurate 3D models require systematic flight planning and proper ground control point placement. The Mavic 3T's mechanical shutter eliminates rolling shutter distortion that compromises photogrammetric accuracy in competing platforms.
GCP Placement Strategy
For venue complexes exceeding 50,000 square meters, deploy a minimum of 8 ground control points distributed across the survey area. Place GCPs on stable surfaces—concrete foundations, permanent fixtures, or painted targets on asphalt.
Avoid placing control points on:
- Temporary structures or staging equipment
- Surfaces subject to thermal expansion
- Areas with heavy foot traffic during survey windows
- Shadowed zones that reduce target visibility
Survey each GCP with RTK-enabled receivers achieving horizontal accuracy below 2cm. Import coordinates into your photogrammetry software before processing to enable direct georeferencing.
Flight Planning Parameters
| Parameter | Roof Survey | Facade Inspection | Site Overview |
|---|---|---|---|
| Altitude (AGL) | 60-80m | 25-40m | 100-120m |
| Overlap (Front) | 80% | 85% | 75% |
| Overlap (Side) | 70% | 80% | 65% |
| Gimbal Angle | -90° | -45° to -60° | -90° |
| Speed | 8 m/s | 5 m/s | 10 m/s |
| GSD | 1.5 cm/px | 0.6 cm/px | 2.5 cm/px |
The 12MP zoom camera captures facade details at distances that maintain safe obstacle clearance. Use 7x optical zoom for close inspection of structural connections, expansion joints, and drainage systems without approaching within rotor wash distance.
BVLOS Considerations for Extended Venue Complexes
Beyond visual line of sight operations require additional planning, equipment, and regulatory compliance. The Mavic 3T supports BVLOS through its O3 transmission range and onboard collision avoidance, but operational approval depends on your jurisdiction.
Visual Observer Positioning
When BVLOS authorization permits extended operations, position visual observers at intervals not exceeding 1.5km. Each observer requires direct communication with the pilot in command and authority to initiate emergency procedures.
Establish predetermined waypoints where aircraft transitions between observer coverage zones. The Mavic 3T's mission planning interface supports these handoff points with automated altitude and heading adjustments.
Contingency Planning
Program return-to-home altitudes 30 meters above the tallest venue structure. Configure lost-link behavior to hover for 60 seconds before initiating return, allowing time for signal recovery in EMI-heavy environments.
Hot-swap batteries extend BVLOS mission duration beyond single-battery limits. Designate landing zones at 500-meter intervals for battery exchanges during extended linear inspections of venue perimeters.
Common Mistakes to Avoid
Ignoring wind loading on large structures: Venue roofs and facades create turbulent airflow that destabilizes hovering aircraft. Maintain minimum 10-meter standoff from vertical surfaces and avoid flying directly above parapet edges where wind acceleration occurs.
Insufficient thermal calibration: Skipping flat-field correction before thermal capture produces inconsistent temperature readings across image frames. Trigger manual FFC every 5 minutes during extended thermal surveys.
Overlooking magnetic interference: Steel-reinforced concrete structures distort compass readings. Calibrate the Mavic 3T's compass away from the venue before beginning operations, and monitor heading stability throughout the mission.
Single-pass data collection: Professional venue documentation requires multiple passes at varying altitudes and angles. Plan for minimum three flight missions per inspection area to ensure complete coverage and redundant data capture.
Neglecting metadata documentation: Thermal images without embedded GPS coordinates and timestamps lose evidentiary value. Verify that location services remain active and storage media has sufficient capacity before each flight.
Frequently Asked Questions
How does the Mavic 3T handle inspection of venues with active crowds?
The Mavic 3T should not operate directly over active crowds without specific regulatory authorization and risk mitigation measures. Schedule inspections during venue downtime, or use the 56x hybrid zoom to capture details from positions outside populated areas. The thermal sensor can assess crowd density and flow patterns from safe lateral distances when event monitoring is required.
What file formats work best for venue inspection deliverables?
Export thermal data as RJPEG files that preserve radiometric temperature values for post-processing analysis. Photogrammetric outputs should include GeoTIFF orthomosaics and LAS point clouds for integration with client GIS systems. The Mavic 3T's onboard storage supports simultaneous capture of all required formats without workflow interruption.
Can the Mavic 3T detect structural damage in concrete venue elements?
Thermal imaging reveals subsurface concrete delamination, rebar corrosion, and moisture infiltration that precede visible cracking. The 150°C thermal range also identifies overheating in embedded electrical conduits and post-tensioning systems. However, thermal inspection supplements rather than replaces physical testing methods for structural certification.
